Professional Sharp Cut Filters for Industrial Applications

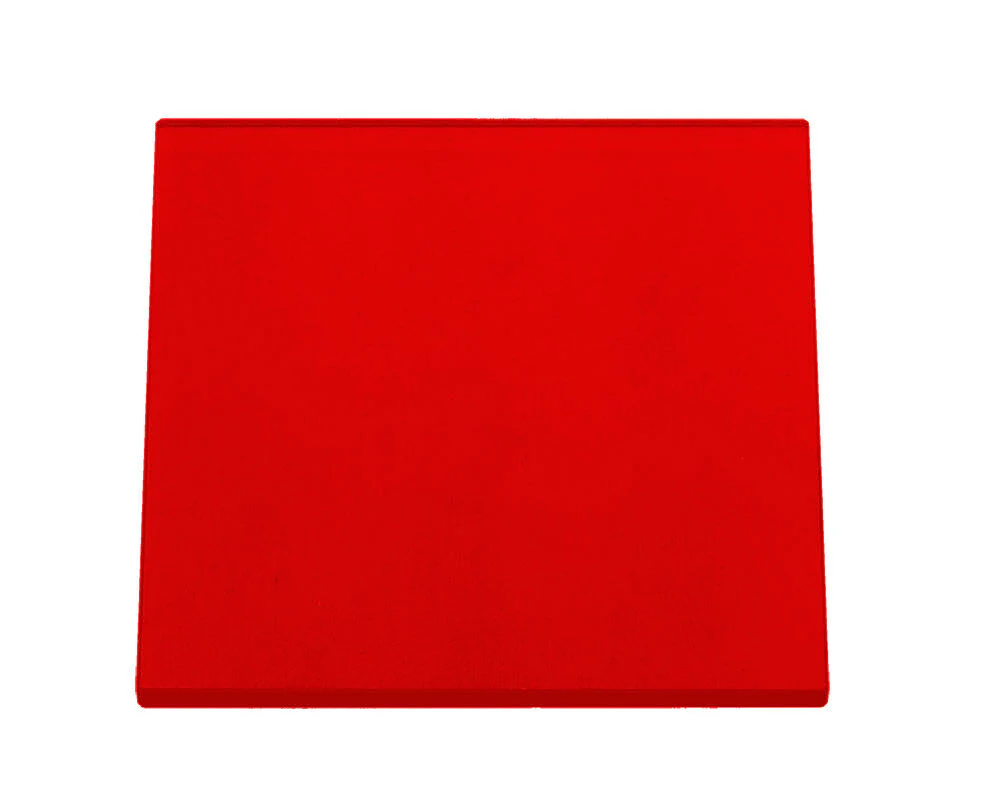

HOYA CANDEO sharp cut filters are long-pass optical glass filters designed to block shorter wavelengths of light and allow longer wavelengths to pass. Within the wavelength range of approximately 350 nm to 800 nm, these filters selectively remove unwanted short-wavelength light—such as ultraviolet and blue—helping improve contrast, reduce scattering, and enhance image clarity for optical, inspection, and imaging applications.

Key Features:

High-precision wavelength cutoff
Industrial-grade optical quality
Standard 50×50mm square format
2.5mm thickness for durability
Suitable for imaging systems, inspection equipment, and optical analysis

Available Series:

L Series (L37-L42): Long wavelength pass filters
Y Series (Y44-Y52): Yellow range filters
O Series (O54-O58): Orange range filters
R Series (R60-R72): Red range filters

📊 Comparison Chart

View Detailed Colored Glass Filters Comparison Chart →

Compare all filter specifications, transmission characteristics, and technical data on the HOYA CANDEO website.

Technical Specifications

...

Item	Standard Value			Color specification (Standard illuminants A)		Thickness	Refractive Index	Chemical property		Thermal properties				Mechanical properties		Specific gravity
Model	λT (nm)	∆λ (nm)	TH (%)	x	y	mm	600nm	DW	DA	Tg	Ts	α -30/70	α 100/300	HK	FA	Specific gravity
L37	370±5	<35	>85	0.448	0.408	2.5	1.580	2	1	440	490	94	103	460	170	3.26
L38	380±5	<35	>85	0.449	0.408	2.5	1.560	2	1	480	535	79	86	490	130	2.96
L39	390±5	<40	>85	0.450	0.409	2.5	1.588	2	1	440	490	90	100	460	170	3.29
L42	420±5	<25	>85	0.452	0.412	2.5	1.533	2	1	550	600	92	105	540	130	2.59
Y44	440±5	<25	>85	0.464	0.428	2.5	1.531	1	2	570	600	99	107	540	130	2.59
Y48	480±5	<25	>85	0.498	0.468	2.5	1.532	3	1	560	625	94	105	540	130	2.67
Y50	500±5	<25	>85	0.515	0.471	2.5	1.530	2	1	560	620	96	108	540	130	2.68
Y52	520±5	<25	>85	0.536	0.459	2.5	1.531	2	1	560	620	96	108	540	130	2.68
O54	540±5	<25	>85	0.572	0.427	2.5	1.532	1	1	560	625	99	107	520	140	2.68
O56	560±5	<25	>85	0.610	0.389	2.5	1.530	1	1	560	625	93	104	520	140	2.68
O58	580±5	<25	>85	0.654	0.346	2.5	1.531	1	1	560	625	93	104	520	140	2.68
R60	600±5	<25	>85	0.686	0.314	2.5	1.530	1	2	560	620	93	103	520	140	2.69
R62	620±5	<25	>85	0.714	0.286	2.5	1.533	1	1	560	620	95	107	520	140	2.68
R64	640±5	<35	>85	0.726	0.274	2.5	1.532	1	1	555	620	94	106	520	140	2.68
R66	660±5	<35	>85	–	–	2.5	1.535	1	3	530	565	98	117	470	160	2.85
R70	700±10	<45	>85	–	–	2.5	1.546	1	3	525	575	98	115	470	160	2.86
R72	720±10	<45	>85	–	–	2.5	1.547	1	3	525	575	100	116	470	160	2.86
